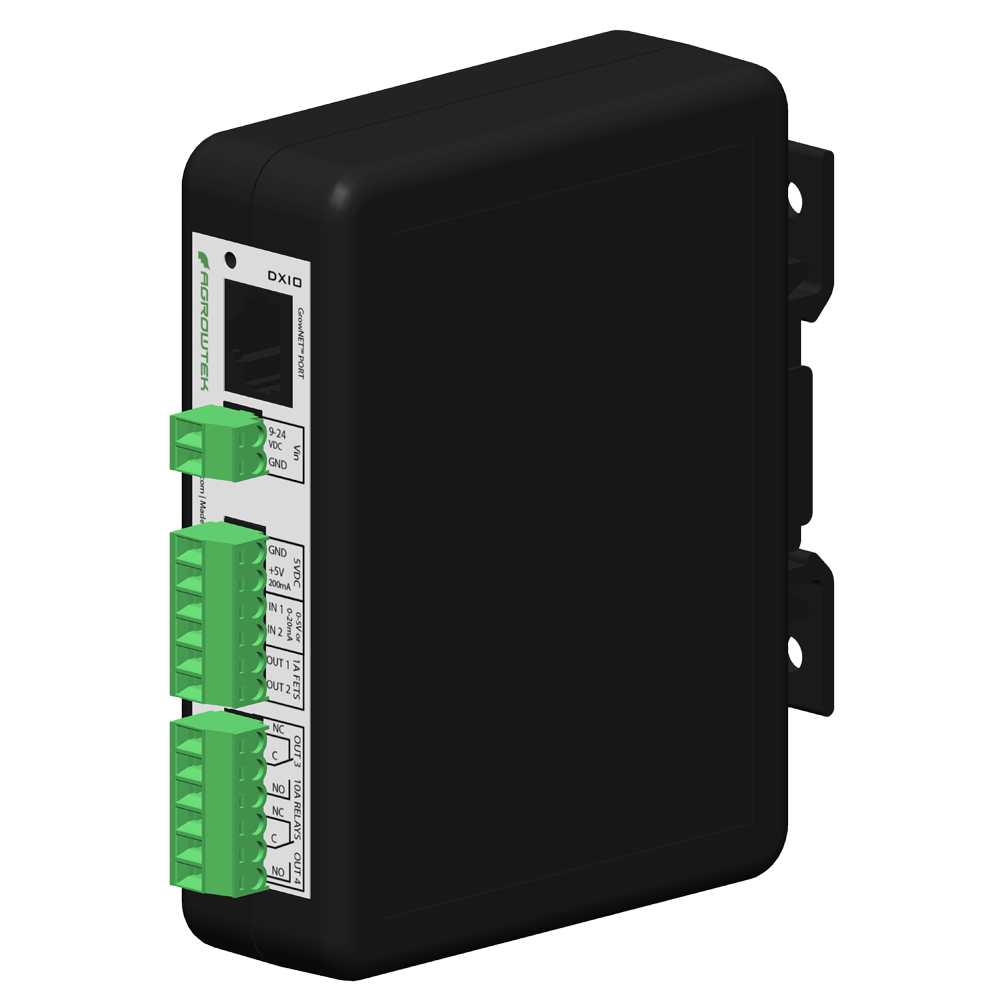

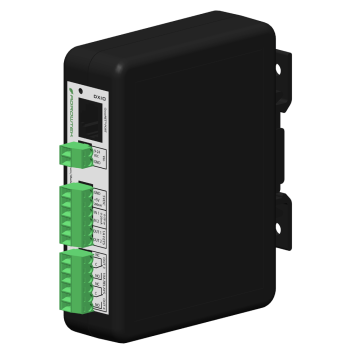

GrowControl™ DXIO Mixed I/O Module

Mixed I/O DC Module

DC Inputs

DC & Relay Outputs

Built-in Surge Suppression

Digital Control, MODBUS Addressable

Made in USA

Description

GrowControl™ DXIO modules for DIN rail feature two (2) analog/discrete inputs (0-5V or 0/4-20mA,) two (2) DC FET outputs with PWM, and two (2) form C dry-contact 3.5A relays. Includes an onboard 200mA 5Vdc power supply for driving sensors such as the SXL optical liquid sensor.

Analog Sensors
Soil moisture, temperature probes, and other off-the-shelf sensors can be incorporated into GCX systems for data logging and device control with custom scaling.

Discrete Sensors
Use inputs for discrete sensors by switching the on-board 5Vdc source to one of eight input channels.

DX series modules can be operated on 10-24Vdc.

GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

DXR6 modules are UL Listed for U.S. and Canada.

Compatible

	GCX Cultivation Controllers
	MODBUS RS-422/485

Documents

Data Sheet DXIO

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Building Automation

Industrial Automation

OEM & Custom Applications
