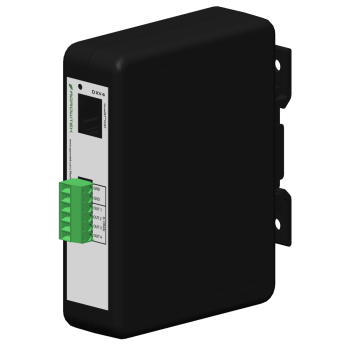

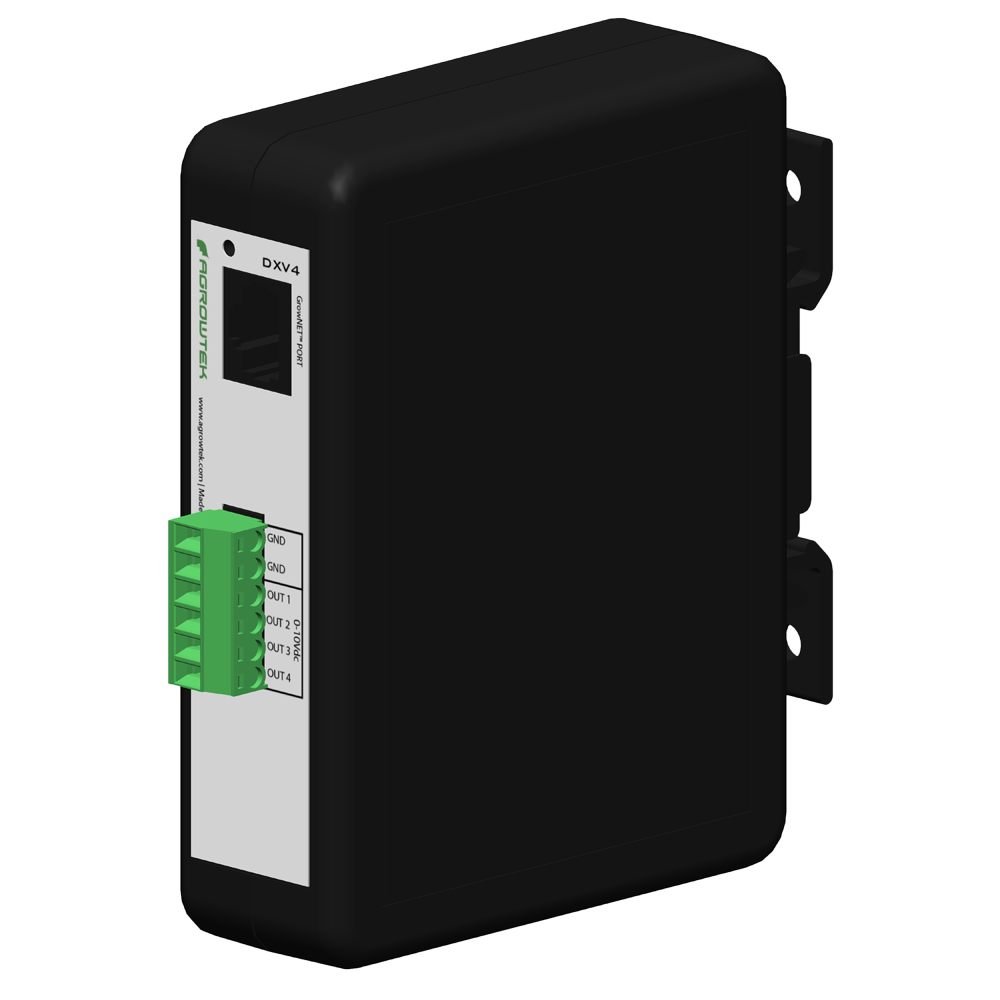

GrowControl™ DXV-4 Analog 0-10V DC Output Module
0-10V lights dimming module for GrowControl™ GCX cultivation control systems.
4-Channel 0-10V Dimming Module
0-10V DC Outputs
Drive up to 50 LightFixtures per Channel
Digital Control, MODBUS Addressable
Made in USA
Description
GrowControl™ DXV4 modules for DIN rail feature four (4) 0-10V analog outputs for dimming lighting zones and other analog control. Dim up to 50 light fixtures per output channel.
Fixture cabling must be stripped and installed in terminal blocks on the module; see DIXO manual below.
GrowNET™ port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.
Lighting Cable Adapter
Optional Lighting Cable Adapters (LCA) convert the 0-10V fixture cable to a 6-inch "pig-tail" lead for connection to the terminal blocks on DXV4 modules. Eliminate the need for cutting and stripping the RJ lighting cables for a faster and more robust installation.
Compatible
 |
GCX Cultivation Controllers |
 |
MODBUS RS-422/485 |
 |
DXV4 modules are UL Listed for U.S. and Canada. |
Documents
Applications
Greenhouses & Growing Facilities
Building Automation
Industrial Automation
OEM & Custom Applications
