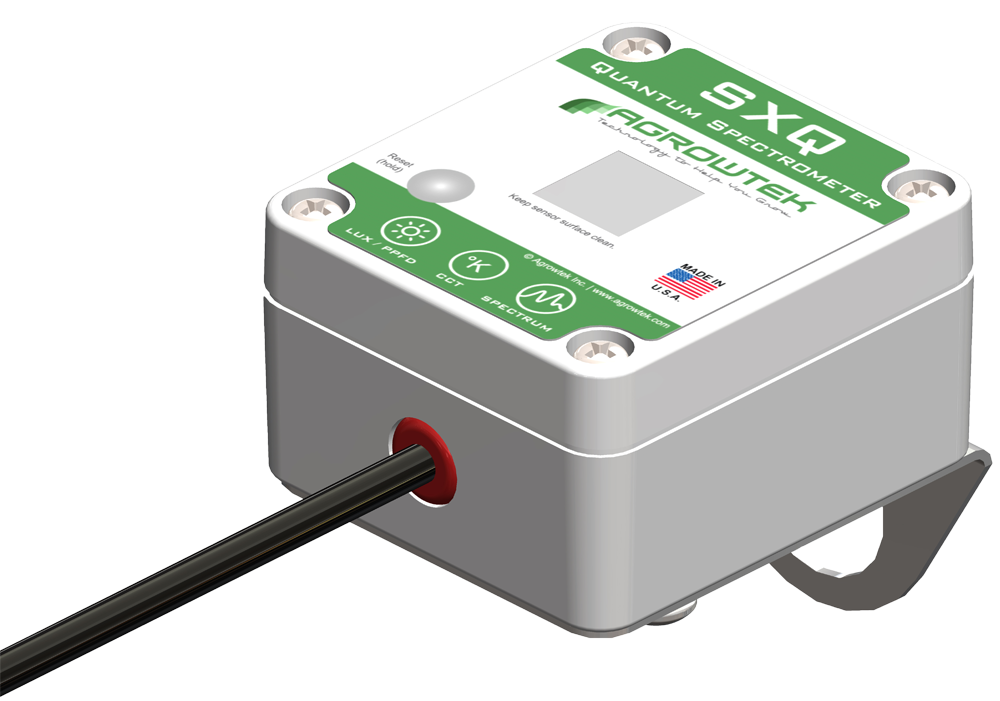

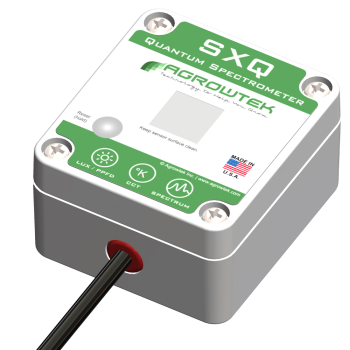

SXQ Quantum Light Sensor & Spectrometer

PPFD & DLI | Color Spectrometer

PPFD (Photon Flux Density)
0 - 5000 µmol m-2 s-1

Lux
0 - 250,000 lux

CCT Color Temperature
0 - 10,000 °K

Flicker Frequency
0 - 120 Hz

Spectral Intensity
400 - 750 nm

Description

SXQ Quantum Light and Spectrum sensor provides precision data on the light quality and energy delivered to your crop in real time. SXQ sensor detects light intensity in Lux and "ePAR" PPFD, color temperature (°K) and relative spectral intensity in one compact package.

Accurate digital sensors provide the same PPFD data as popular quantum light meters with calculation options for standard PAR (400-700nm) or extended PAR (400-750nm) ranges. In addition, a full spectral intensity plot is generated providing data on the composition of your light spectrum.

Control your daily lighting integral (DLI) by managing supplementary lighting and more based on accurate plant canopy measurements. Rugged design and low cost allow the sensors to be permanently mounted in the growing environment.

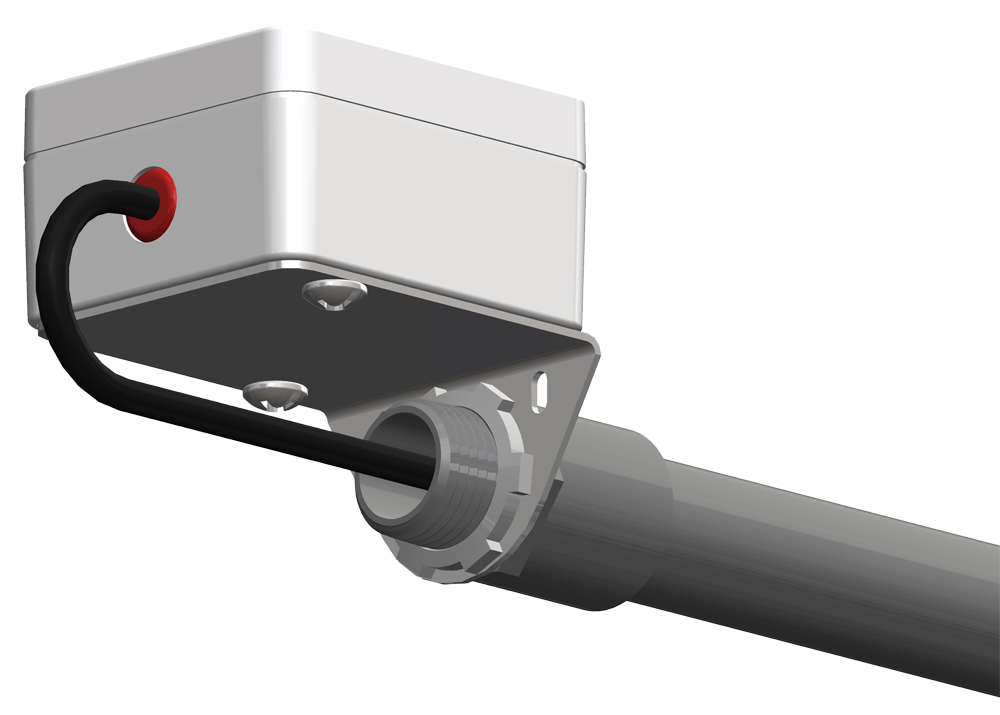

Housed in a weather-proof enclosure for indoor or outdoor mounting with outdoor rated cable. Includes a bracket for mounting on a pole or flat surface.

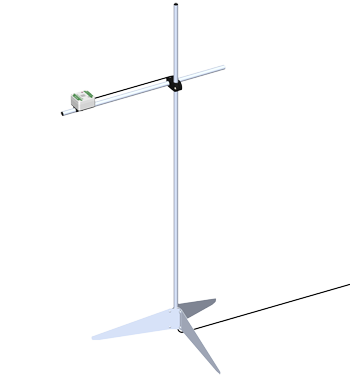

Floor Stands

Agriculture grade floor stands provide a rugged and adjustble solution for mounting your sensors in the canopy. Place the stand on the floor or directly onto table trays. Sturdy design is constructed of corrosion resistant materials with a stable all-stainless-steel base. Available in three different heights. FSX Data Sheet

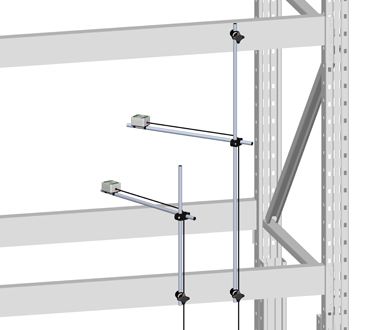

Custom Mounts

"Build Your Own" sensor mounting system for custom applications where a floor stand is not ideal. Select the components that you need to mount your sensor. Constructed of the same high quality materials as the floor stands. BYO Data Sheet

Compatible

Connects to Agrowtek's GrowControl™ Cultivation Controllers as part of a complete facility control solution. Compatible with third-party PLC's and building automation via the open MODBUS protocol.

	GCX Cultivation Controllers
	MODBUS

Documents

Data Sheet

Installation Manual

MODBUS Manual

Applications

Greenhouses & Growing Facilities

Aquarium, Aquaponics

Analytical, Research & Academic

OEM & custom applications
