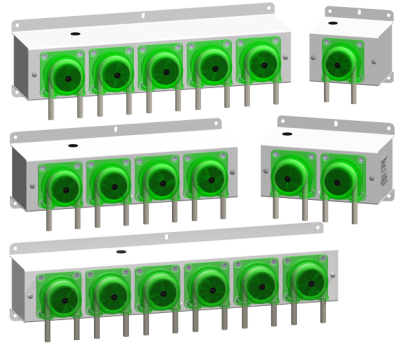

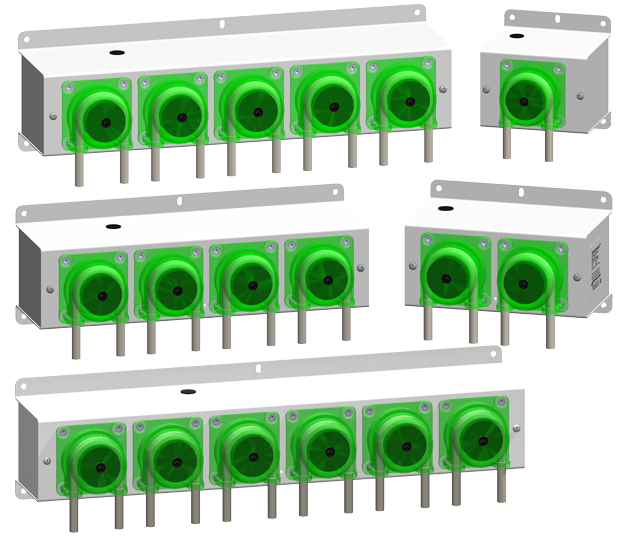

AgrowDose™ ADi Digital Persitaltic Dosing Pumps

Precision | Durability | Intelligence

Description

AgrowDose^TM ADi series "intelligent" dosing pumps are digitally controlled, variable speed capable next-generation pumps for use with Agrowtek's GrowControl™ GCX Cultiavtion Controllers, SXH hydroponics controller or GXH hydroponics controller for autonomous pH & EC dosing. Available in 1, 2, 4, 5 and 6 pump models.

Rugged and economical peristaltic pumps are designed for injecting nutrient solutions, pH buffers and other chemicals into stock tanks or pressurized water lines up to 20psi. Pump heads feature a suction intlet tube and a pressurized outlet tube. Simply place the inlet side into any size nutrient or buffer stock tank and route the outlet to the reservoir. Pumps can draw solutions up to 10ft vertical lift and do not require priming. Peristaltic action resists fouling or clogging even with thick fluids.

ADi pumps can also be controlled from a computer using the LX1 USB AgrowLINK™ for batch dosing, or from the LX2 ModLINK™ via MODBUS RTU for PLC applications.

Quick-change replaceable pump heads offers fast, easy maintenance when tubing wears out.

• 120Vac/24Vdc Power adapter included for motors
• 5/16" OD x 3/16" ID FDA Tubing
• High Speed 480mL/min flow rate per pump

Documents

Compatible

	GCX Cultivation Controllers
	MDX Nutrient Dosers
	MODBUS RS-422/485

USB Batch Dosing

LX1 USB AgrowLink connects the GrowNET™ port of AgrowDose ADi intelligent pumps to a PC for simple batch dosing applications using free PC software. Configure and save different recipies and run them as needed for: custom nutrient mixtures, beverage mixing, chemical mixing and dispensing, plant watering and more.

Applications
